PT-12-32-xx

PTFE filter elements are produced by sintering pure PTFE granules, no other substances are used in the construction.

These filter elements are usually offered when only 100% pure PTFE can be used. It is normally preferable to offer a K type disposable filter element, if suitable, as both  pressure drop and life characteristics are superior to the PTFE elements.

The advantage of PTFE is a higher maximum temperature, up to 200°C, and somewhat better chemical resistance. These filter elements should be ultrasonically cleaned to give best results.

These filter elements are also self-sealing.

Please note other grades are available upon request.

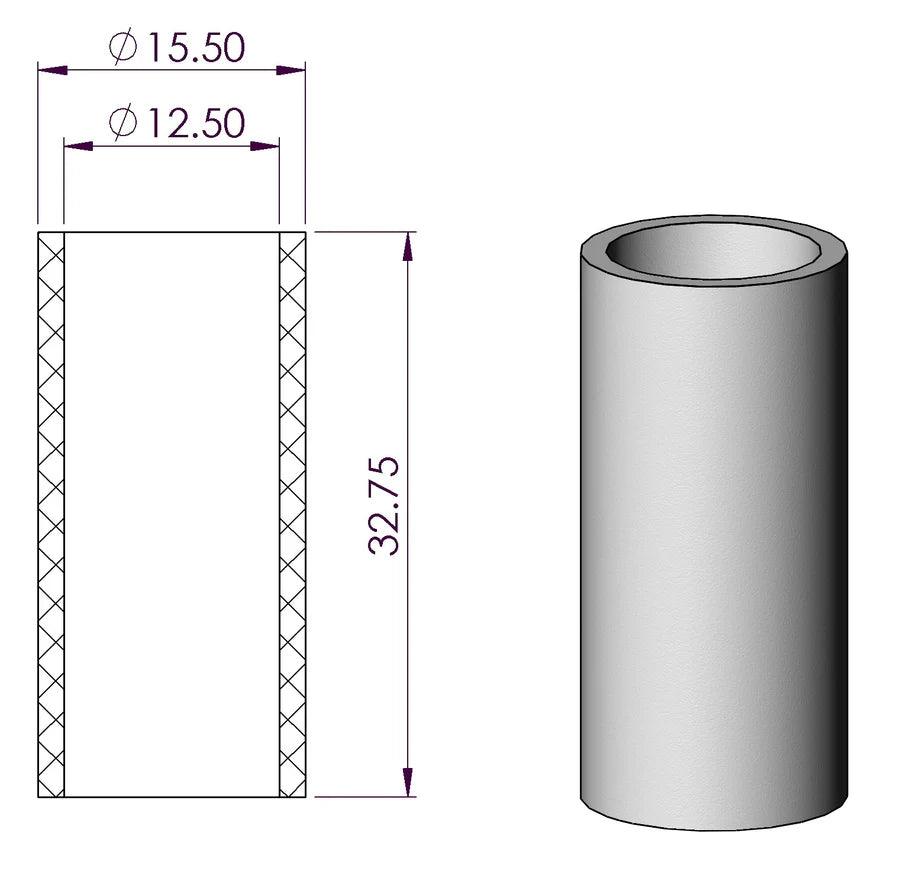

Standard Dimensions
Grades available - 3µm, 10µm ,20µm.
Replace the ‘xx’ with the grade, e.g. PT-120-03

Specifications
