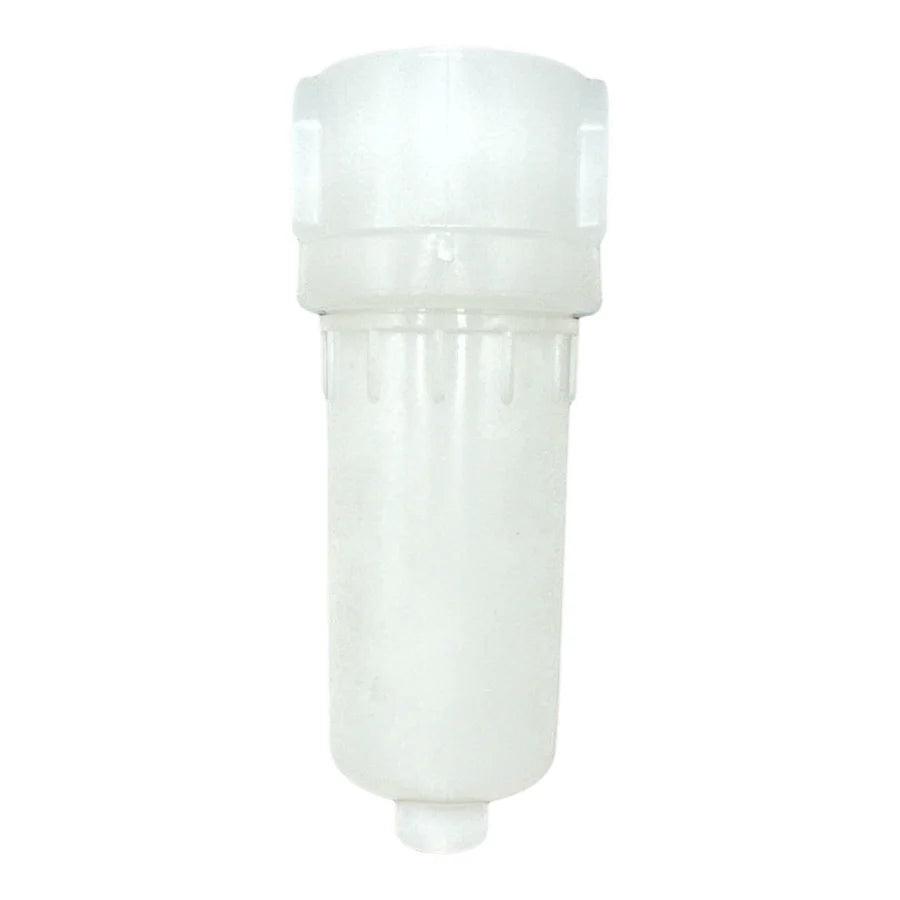

725P Filter Housing
725P Filter Housing
Couldn't load pickup availability
Headline polypropylene housings are available two versions: all polypropylene with matching polypropylene bowl (P), or with lower cost polycarbonate bowl (PC). Housings for element sizes 12-32 are available. Each housing configuration is available without a drain for particulate filtration, or with a manual drain for coalescing applications. These housings are widely used in low pressure systems requiring low cost filters, with the good chemical resistance polypropylene provides..
- Viton seals are standard but others are available:
- Mounting Brackets are available,
Specifications
| Port Size - NPT | 1/4" |
| Drain Size - NPT | None |
| Max. Pressure - Bar (1) | 7 |
| Max. Temperature - ºC (2) | 50 |
Filter Element Codes (3)
| Disposable Element | 12-57-xx |
| Stainless Steel Element | SS-12-57-xx |
| PTFE Element | PT-12-57-xx |
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.
(3) Replace ‘xx’ with grade required, e.g. 12-57-50C, SS-12-57-25, PT-12-57-03.
