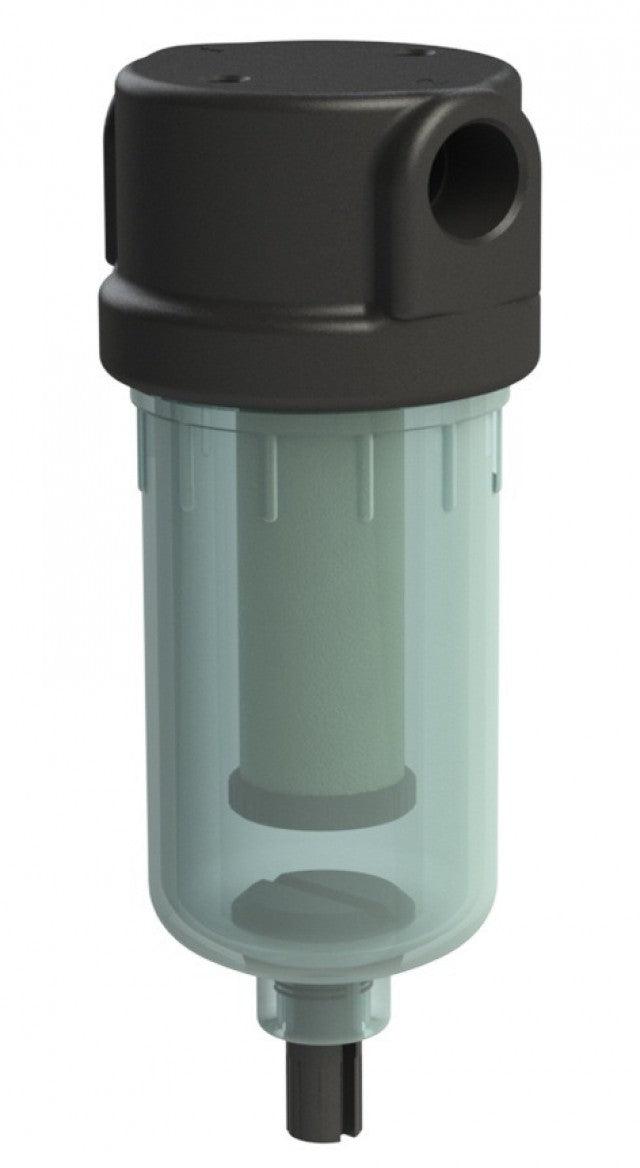

725NC Filter Housing
725NC Filter Housing
Regular price
£27.70 GBP
Regular price
£0.00 GBP
Sale price
£27.70 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Headline nylon housings are available two versions: all nylon with transparent nylon bowl (N), or with lower cost polycarbonate bowl (NC). Housings for element sizes 2-57 are available, either with a manual drain valve or with no drain. These housings are widely used in low pressure systems where plastics can be specified.
- Viton seals are standard but others are available:
- Mounting Brackets are available,
Specifications
| Port Size - NPT | 1/4" |
| Drain Size - NPT | None |
| Max. Pressure - Bar (1) | 7 |
| Max. Temperature - ºC (2) | 50 |
Filter Element Codes (3)
| Disposable Element | 12-57-xx |
| Stainless Steel Element | SS-12-57-xx |
| PTFE Element | PT-12-57-xx |
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.
(3) Replace ‘xx’ with grade required, e.g. 12-57-50C, SS-12-57-25, PT-12-57-03.
