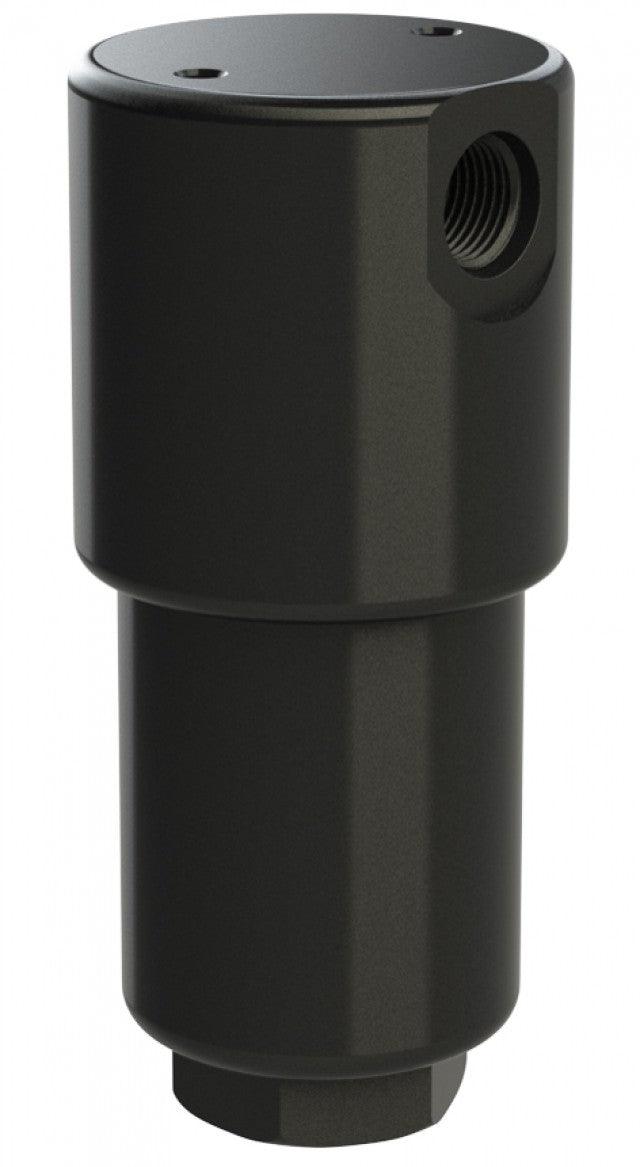

315ALHP-SAE6 Filter Housing
315ALHP-SAE6 Filter Housing
Regular price
£77.40 GBP
Regular price
£0.00 GBP
Sale price
£77.40 GBP
Unit price
/
per
Natural Gas Vehicle (NGV) systems require the high efficiency filtration & superior flow rates that Headline Filters housings and associated elements are renowned for. Our 100% glass microfiber filters elements capture particles & drain liquid fast with a very low pressure drop, this ensures great protection of the system whilst being a compact & robust design.
These are high pressure filters rated to 250 bar, they have the option of NPT or SAE threads for high pressure applications.
- High Efficiency Filtration
- Superior flow rates
- Excellent particulate capture
- Fast liquid drainage
- Low pressure drop
- Small, compact & robust design
- NPT or SAE threads
Specifications
Port Size - NPT | SAE6 |
Drain Size - NPT | SAE6 |
Max. Pressure - Bar | 250 |
Max. Temperature - ºC | 120 |
Filter Element Codes (1)
Disposable Element | 12-57-xx |
Stainless Steel Element | SS-12-57-xx |
PTFE Element | PT-12-57-xx |
(1) Replace ‘xx’ with grade required, e.g. 12-57-50C, SS-12-57-25, PT-12-57-03.
