Headline Filters

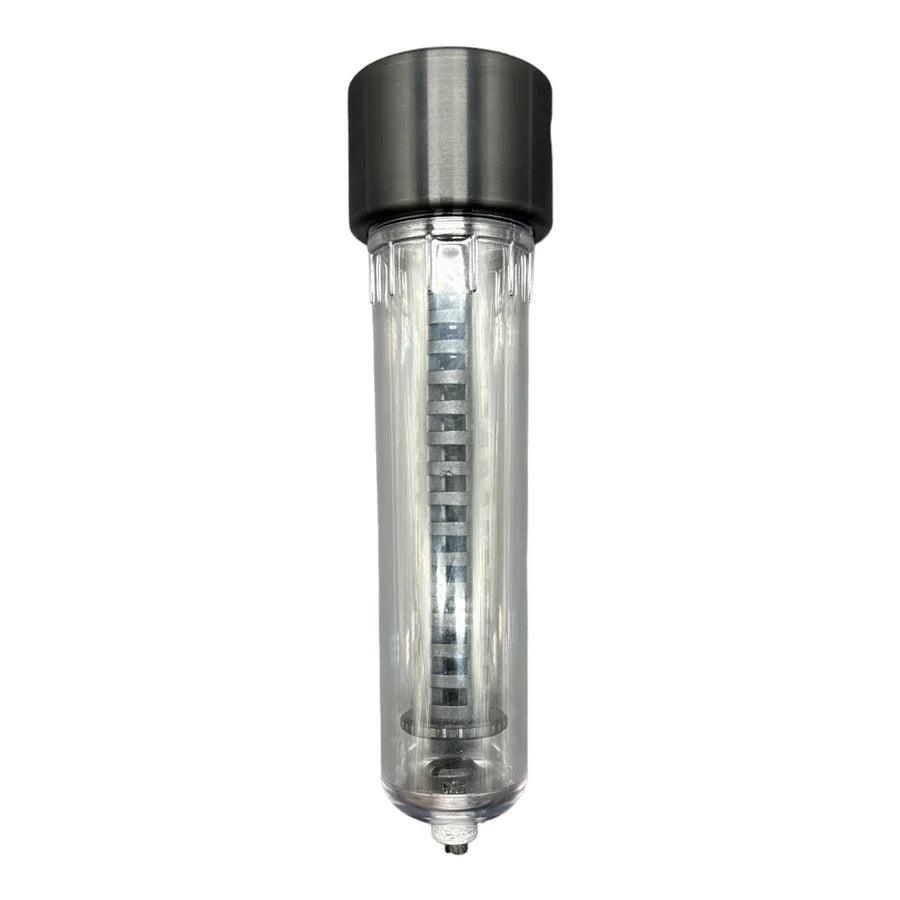

250 Filter Housing
250 Filter Housing
Regular price
£75.10 GBP
Regular price
£0.00 GBP
Sale price
£75.10 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
In addition to gas analysis and instrumentation applications, Headline 200 series housings are widely used for compressed air filtration. Coalescing elements are used to filter particulate, water and oil aerosols, while the addition of a final filter with an adsorption cartridge can produce calibration quality air..
- Nitrile seals are standard but others are available:
- Mounting Brackets are available, please see the product Data Sheets
Specifications
| Port Size - NPT | 1/4" |
| Drain Size - NPT | Manual |
| Max. Pressure - Bar | 10 |
| Max. Temperature - ºC | 50 |
Filter Element Codes (1)
| Disposable Element | 25-178-xx |
| Stainless Steel Element | SS-25-178-xx |
| PTFE Element | PT-25-178-xx |
(1) Replace ‘xx’ with grade required, e.g. 25-178-50C, SS-25-178-25, PT-25-178-03.
