Headline Filters

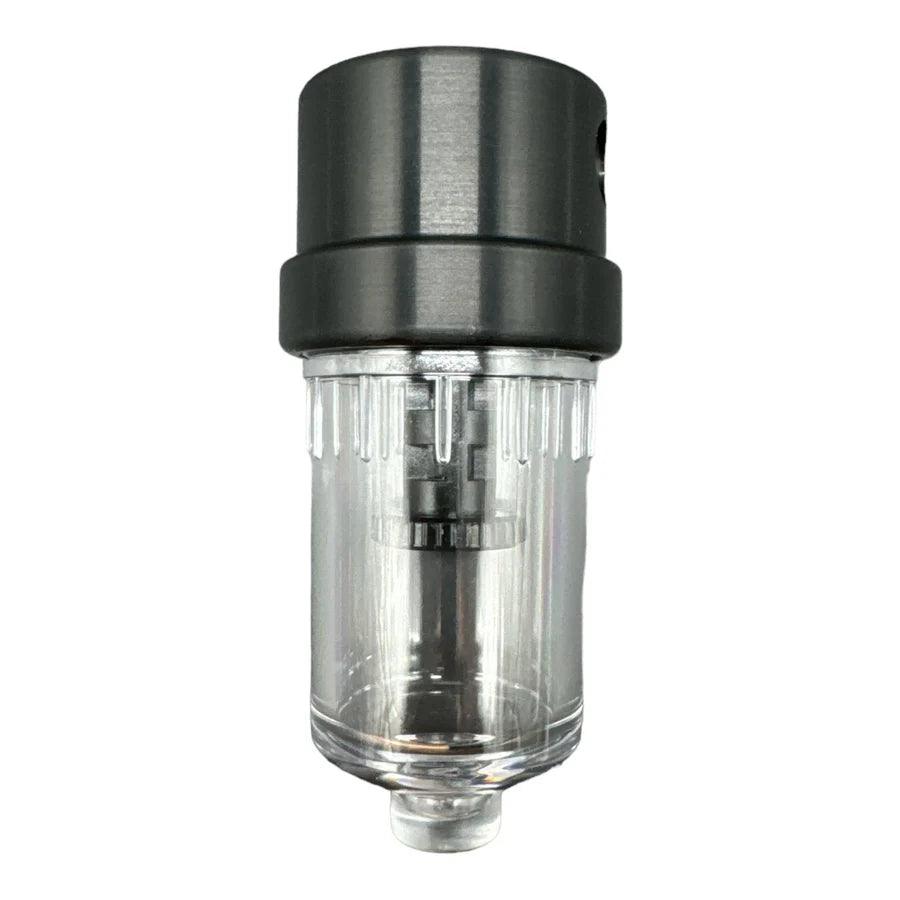

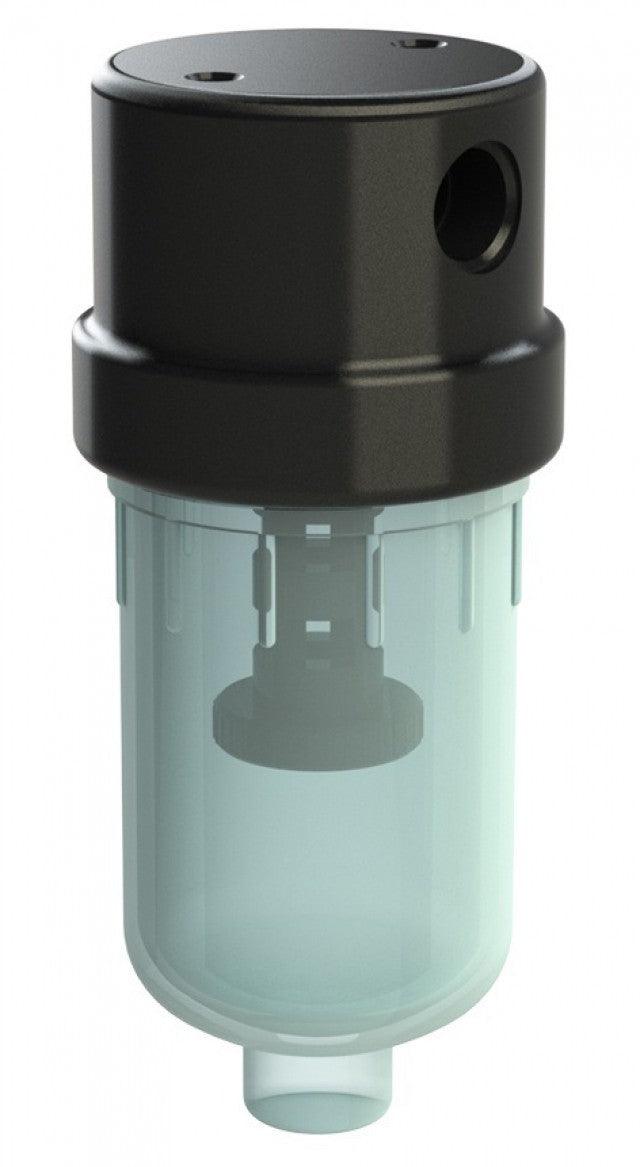

200 Filter Housing
200 Filter Housing
Regular price
£31.80 GBP
Regular price
£0.00 GBP
Sale price
£31.80 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Headline 200 series aluminium and aluminium/polycarbonate housings are extensively used in the applications where non-corrosive gases are filtered. Housings are available with no drains for particulate removal and with manual drains for coalescing applications.
Specifications
| Port Size - NPT | 1/8" |
| Drain Size - NPT | None |
| Max. Pressure - Bar | 10 |
| Max. Temperature - ºC | 50 |
Filter Element Codes (1)
| Disposable Element | 12-32-xx |
| Stainless Steel Element | SS-12-32-xx |
| PTFE Element | PT-12-32-xx |
(1) Replace ‘xx’ with grade required, e.g. 12-32-50C, SS-12-32-25, PT-12-32-03.
