Headline Filters

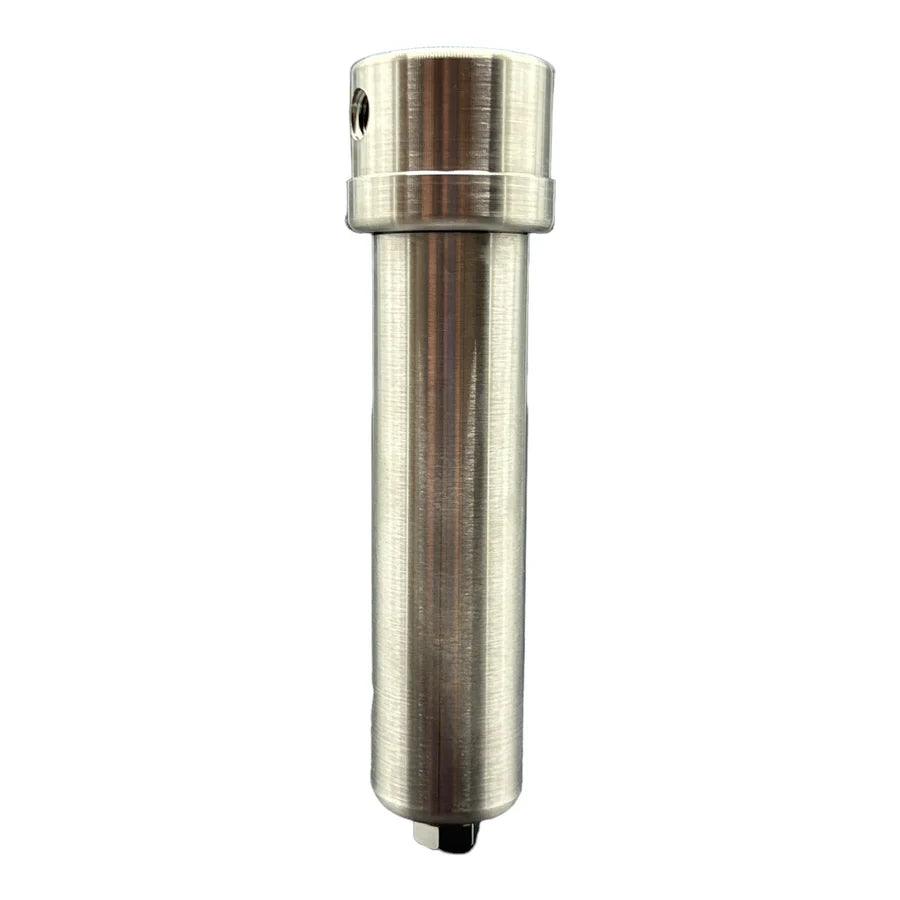

146S Filter Housing
146S Filter Housing
Regular price
£623.20 GBP
Regular price
£0.00 GBP
Sale price
£623.20 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Headline 130 & 140 series stainless steel filters are the most frequently specified housings for applications requiring 25-64-xx or 25-178-xx sized elements. For pressures above 100 bar, the HP & VP ranges should be used.
- PTFE seals are standard but others are available:
- Mounting Brackets & Support Cores are available
Specifications
| Port Size - NPT | 1/2" |
| Drain Size - NPT | None |
| Max. Pressure - Bar (1) | 100 |
| Max. Temperature - ºC (2) | 200 |
Filter Element Codes (3)
| Disposable Element | 25-178-xx |
| Stainless Steel Element | SS-25-178-xx |
| PTFE Element | PT-25-178-xx |
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.
(3) Replace ‘xx’ with grade required, e.g. 25-178-50C, SS-25-178-25, PT-25-178-03.
