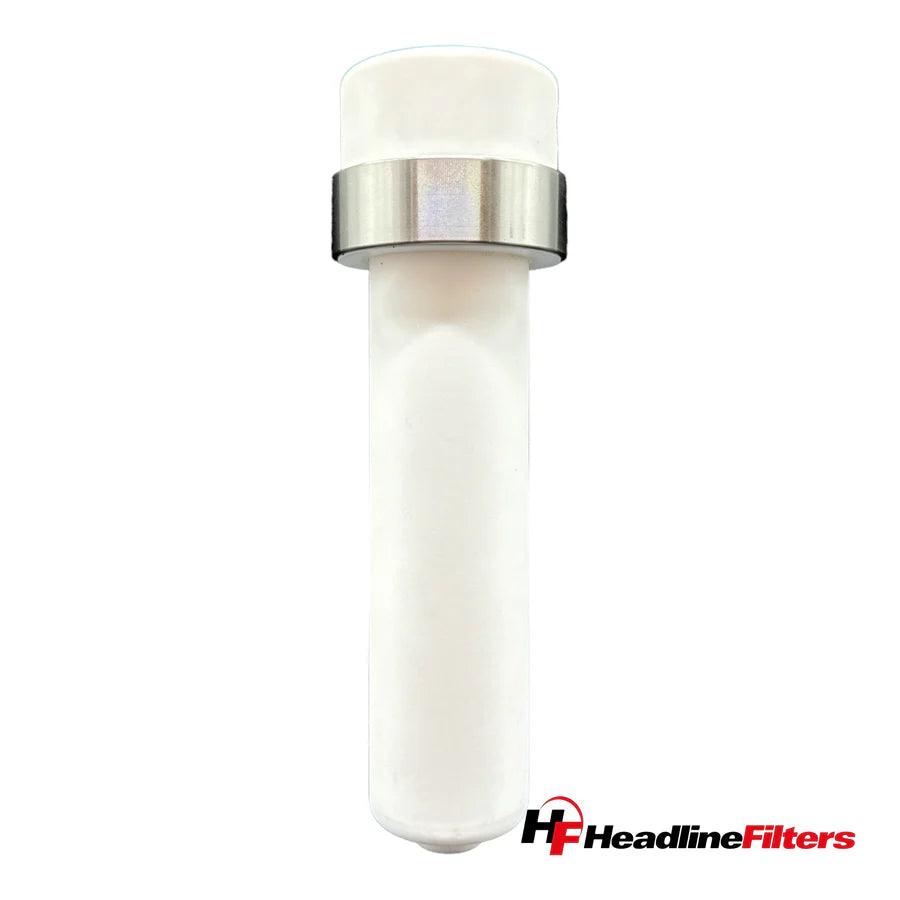

140P Filter Housing
140P Filter Housing
Regular price
£632.70 GBP
Regular price
£0.00 GBP
Sale price
£632.70 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Headline PTFE housings are designed specifically for use in high chemical resistance or very low adsorption applications. They are used with Kynar bonded disposable elements for particulate removal or coalescing applications. Where PTFE is allowable, sintered PTFE elements should be specified.
-
- Viton seals are standard but others are available:
- Mounting Brackets are available
Specifications
| Port Size - NPT | 1/4" |
| Drain Size - NPT | 1/4" |
| Max. Pressure - Bar (1) | 7 |
| Max. Temperature - ºC (2) | 150 |
Filter Element Codes (3)
| Disposable Element | 25-178-xx |
| PTFE Element | PT-25-178-xx |
| For more information please click link | 140P Data Sheet |
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.
(3) Replace ‘xx’ with grade required, e.g. 12-57-50C, PT-12-57-03.
