Headline Filters

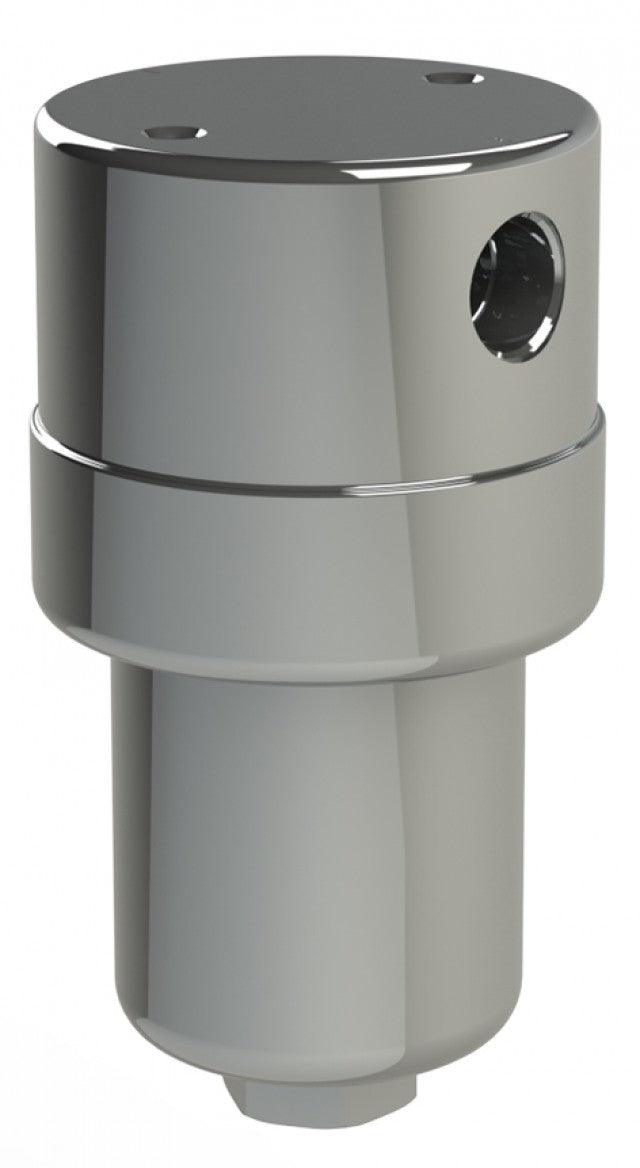

139 SAE8 (CRN)
139 SAE8 (CRN)
Couldn't load pickup availability
High Pressure Compressed Natural Gas (CNG) requires a robust & durable filter housing & elements. These products can be used in a variety of applications including High Pressure CNG Fuel Dispenser Service Filter, Storage Gas Filter, Alternative Fuel Station Filter & Booster Compressor Service Filter.
These are high pressure filters rated to 250 bar, they have the option of NPT or SAE threads for high pressure applications.
| Port Size - NPT | SAE8 |
| Drain Size - NPT | SAE6 |
| Max. Pressure - Bar (1) | 250 |
| Max. Temperature - ºC (2) | 200 |
Filter Element Codes (3)
| Disposable Element | 25-64-xx |
| Stainless Steel Element | SS-25-64-xx |
| PTFE Element | PT-25-64-xx |
Notes:
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket
(3) Replace ‘xx’ with grade required, e.g. 25-64-50C, SS-25-64-25, PT-25-64-03
