138G Filter Housing
138G Filter Housing
Regular price
£307.90 GBP
Regular price
£0.00 GBP
Sale price
£307.90 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

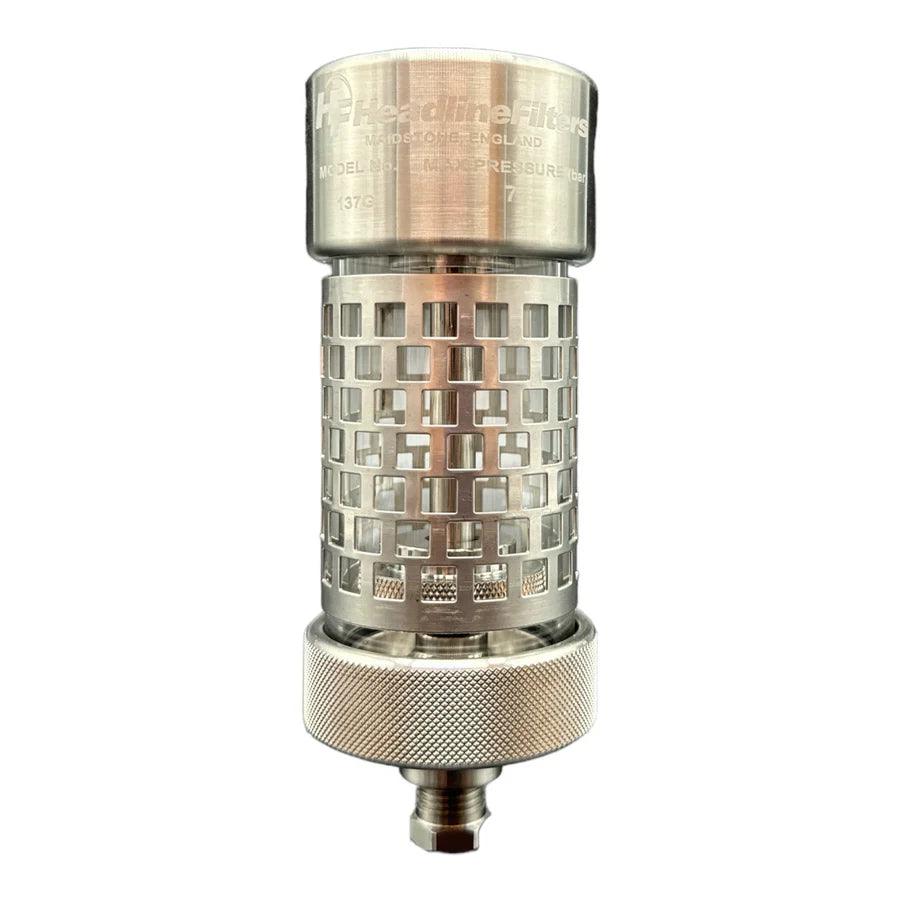

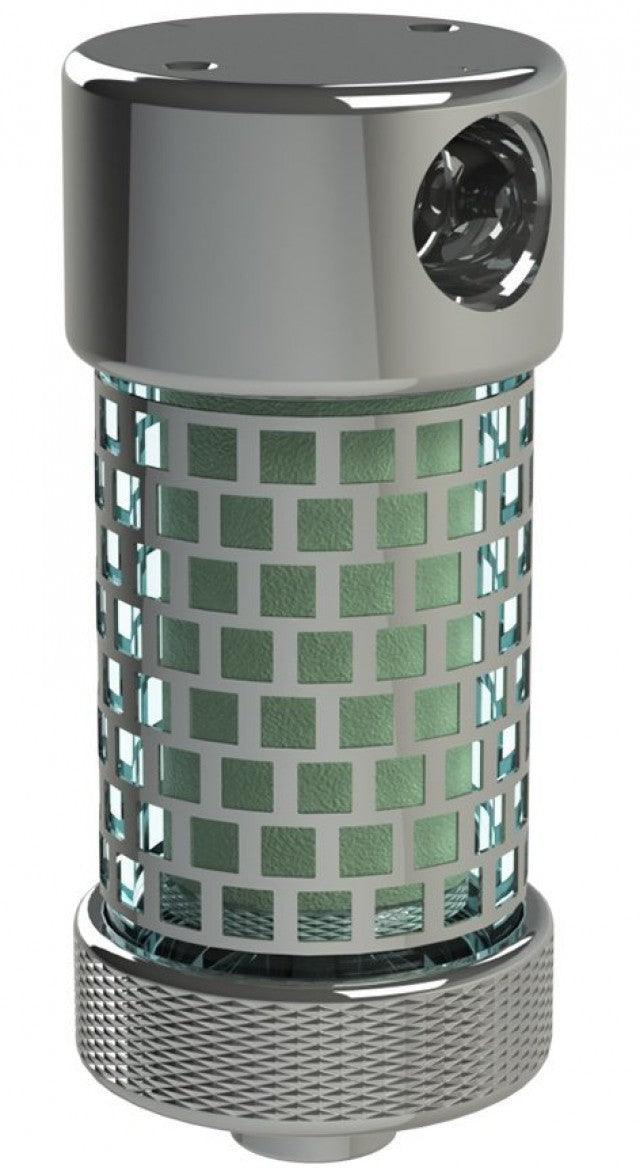

The Headline range of low pressure stainless steel housings is extended by the use of Pyrex glass bowls. This allows the condition of the filter element to be monitored visually. This is important in systems subject to slugs of water, especially those under negative pressure requiring manual draining. Guards are fitted as standard to all Pyrex bowls.
- Viton seals are standard but others are available:
- Mounting Brackets & Support Cores are available
Specifications
| Port Size - NPT | 1/2" |
| Drain Size - NPT | 1/4" |
| Max. Pressure - Bar | 7 |
| Max. Temperature - ºC | 100 |
Filter Element Codes (1)
| Disposable Element | 25-64-xx |
| Stainless Steel Element | SS-25-64-xx |
| PTFE Element | PT-25-64-xx |
(1) Replace ‘xx’ with grade required, e.g. 25-64-50C, SS-25-64-25, PT-25-64-03.
