126S Filter Housing
126S Filter Housing
Regular price
£180.20 GBP
Regular price
£0.00 GBP
Sale price
£180.20 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

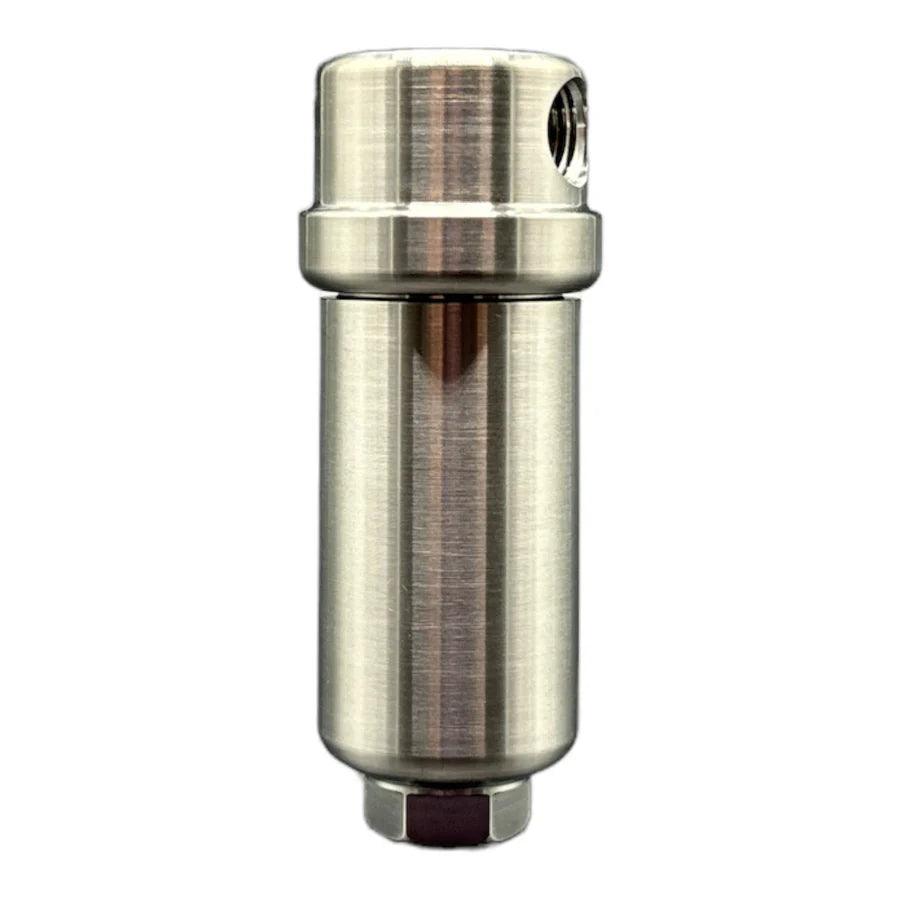

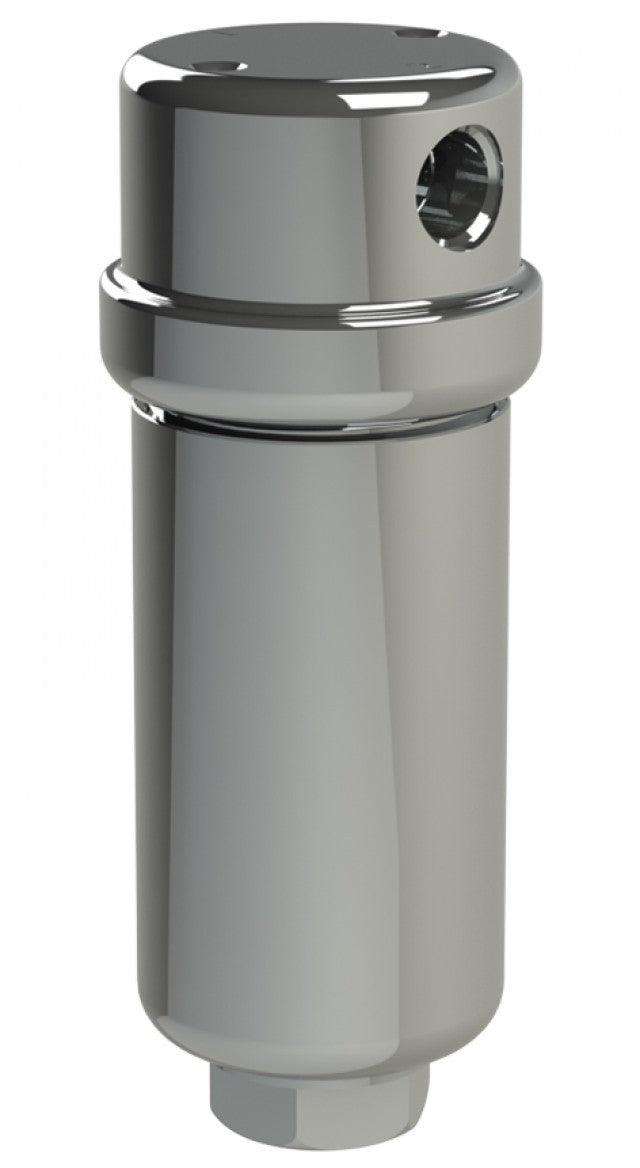

Headline 110 & 120 series filter housings are constructed entirely from 316L stainless steel with PTFE seals. They are free from welds and comply with NACE MR-01-75.
- PTFE seals are standard but others are available:
- Mounting Brackets & Support Cores are available
Specifications
| Port Size - NPT | 1/4" |
| Drain Size - NPT | None |
| Max. Pressure - Bar (1) | 340 |
| Max. Temperature - ºC (2) | 200 |
Filter Element Codes (3)
| Disposable Element | 12-57-xx |
| Stainless Steel Element | SS-12-57-xx |
| PTFE Element | PT-12-57-xx |
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.
(3) Replace ‘xx’ with grade required, e.g. 12-57-50C, SS-12-57-25, PT-12-57-03.
