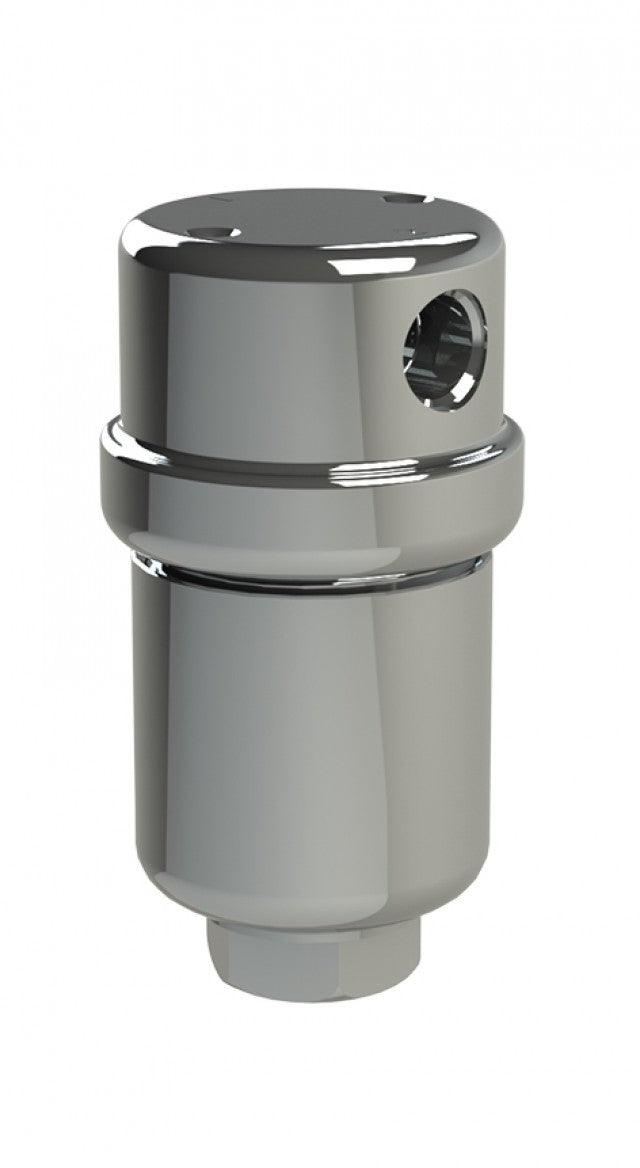

112 Filter Housing

Filter Housing Models 110-116

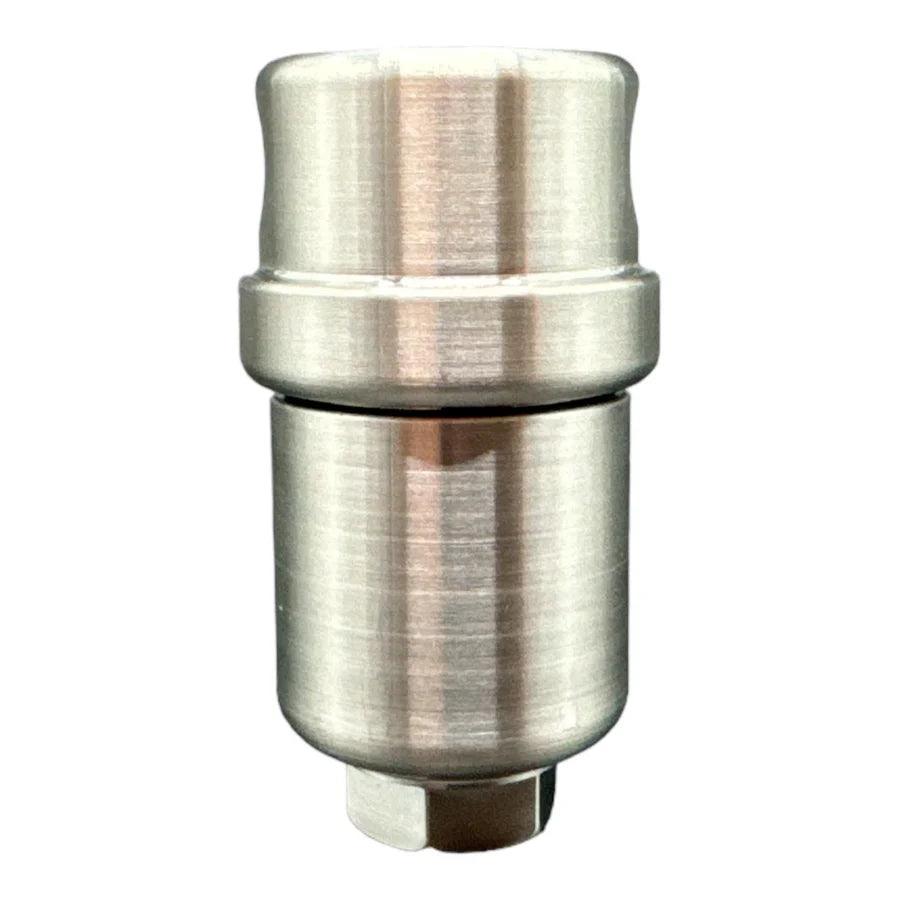

Filter Housing Model range 110 – 116 are ideal for use with gaseous and liquid sample process analysers. The compact design with small internal volume and positive O-ring sealing makes it perfect for demanding analyser applications. They are constructed entirely of 316L stainless steel and are free of welds to comply with NACE MR0175 and MR0103.

 These items are CE/UKCA marked under the PED (2014/68/EU) and PE(S)R (SI-2016/1105).

Applications:

• Analyser Filter
• Sample Conditioning
• High Pressure Relief Valve

 Features:

• Pressure rated to 340 bar (1)
• Temperature rated to 200 degrees Celsius (2)
• A choice of 1/8” or 1/4” NPT Inlet/Outlet ports
• Drain options - 1/8” NPT, 1/4” NPT or No Drain
• Weld free 316L stainless steel construction.
• Particulate Filtration = 2-port designs (Model 114 & 116)
• Coalescing Filtration & Bypass = 3-port designs (Model 110 & 112)
• Internal Volume = 20cc (without filter element installed)
• Weight = 360g

• Viton seals are standard but others are available:
• Mounting Brackets & Support Cores are available, please see the product Data Sheets:

Specifications

Filter Element Codes (3)

(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.

(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.

(3) Replace ‘xx’ with grade required, e.g. 12-32-50C, SS-12-32-25, PT-12-32-03.
