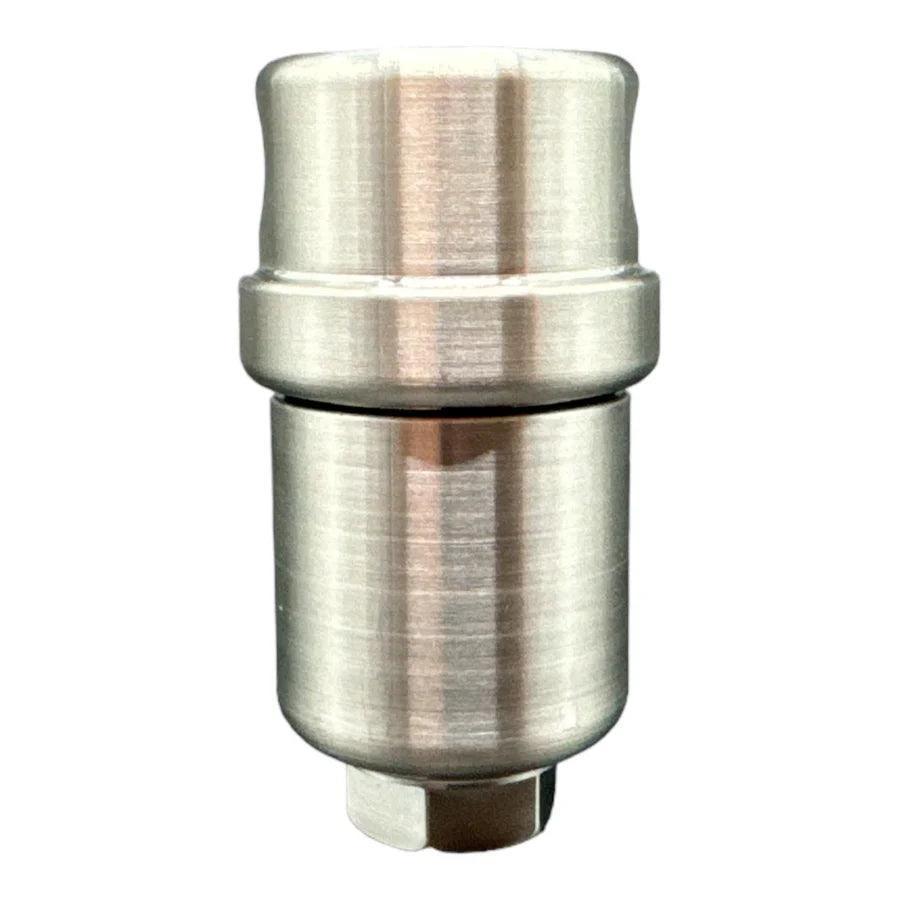

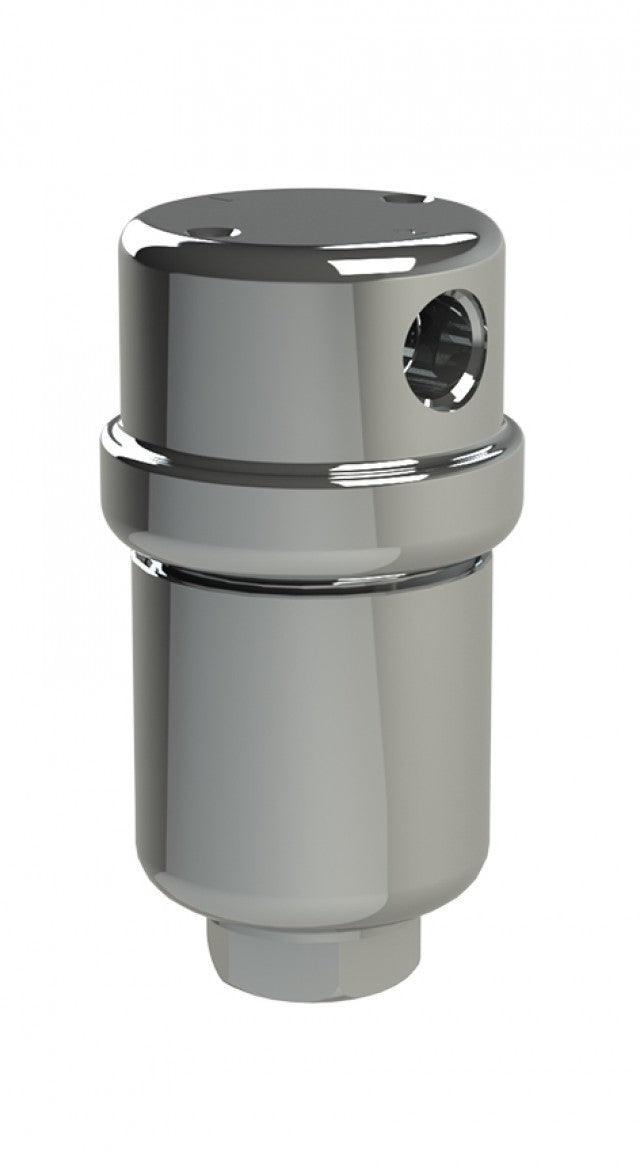

110S Filter Housing
110S Filter Housing
Regular price
£164.00 GBP
Regular price
£0.00 GBP
Sale price
£164.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Headline 110S & 120S series filter housings are constructed entirely from 316L stainless steel with PFTE seals. They are free from welds and comply with NACE MR-01-75.
- PTFS Seals are standard but other are available.
- Mounting Brackets & Support Cores are available, please see the product Data Sheets:
Specifications
| Port Size - NPT | 1/8" |
| Drain Size - NPT | 1/8" |
| Max. Pressure - Bar (1) | 340 |
| Max. Temperature - ºC (2) | 200 |
Filter Element Codes (3)
| Disposable Element | 12-32-xx |
| Stainless Steel Element | SS-12-32-xx |
| PTFE Element | PT-12-32-xx |
(1) Above 200ºC the pressure rating is reduced, consult Headline Filters for the exact rating at any specific temperature.
(2) Maximum temperature 200ºC using standard seals. For temperatures up to 450ºC use a high temperature gasket.
(3) Replace ‘xx’ with grade required, e.g. 12-32-50C, SS-12-32-25, PT-12-32-03.
